Prometheus metrics, explained

01 · Definition

What a Prometheus metric is

Applications publish their metrics as plain text on an HTTP endpoint, usually /metrics. Every line is one number:

Every combination of label values is its own time series. A POST that returned 500 and a GET that returned 200 are counted separately, as two series of the same metric. That is what lets a query pick out only the errors, or only one route.

Two comment lines above the samples give each metric a description and a type:

# HELP http_requests_total Total HTTP requests handled.
# TYPE http_requests_total counter
http_requests_total{method="GET",status="200"} 10432
http_requests_total{method="POST",status="500"} 17

Prometheus pulls: the scraper asks and your app answers. Every answer becomes one more reading in storage, which is what queries, dashboards and alerts read.

02 · Types

The four Prometheus metric types

The type decides how a number behaves over time, and that decides which query makes sense for it.

Counter: a number that only goes up

Requests served, errors, bytes sent. The raw value is a running total since the process started, which is rarely what you want to see. Ask how fast it grows instead:

rate(http_requests_total[5m])       # requests per second
increase(http_requests_total[1h])   # requests in the last hour

When the process restarts, the counter drops to zero. rate() and increase() notice the drop and carry on as if it hadn't happened.

Gauge: a number that goes up and down

Memory in use, items in a queue, open connections. A gauge is a snapshot, so its raw value is the answer:

process_resident_memory_bytes                        # memory now
max_over_time(process_resident_memory_bytes[1h])     # peak in the last hour

Histogram: how values are spread

Use a histogram for durations and sizes, where the average hides the slow requests you care about. Instead of storing every request's duration, it counts how many requests finished within each limit. The buckets are cumulative: the 250 ms bucket also contains everything under 100 ms.

# p95 latency across every instance
histogram_quantile(0.95, sum by (le) (rate(http_request_duration_seconds_bucket[5m])))

Because bucket counts add up, you can combine histograms from every instance and get one percentile for the whole service. Pick bucket limits around your targets: if the goal is 300 ms, put a bucket at 300 ms.

Summary: percentiles computed in the app

A summary works out percentiles such as p50 and p99 inside your application and publishes them ready-made:

rpc_duration_seconds{quantile="0.99"} 0.231

That is convenient for one process and a dead end for a service. Percentiles from five instances cannot be averaged into the service's p99, and you can't ask for a p95 later if the app only computed p50 and p99. Reach for a histogram unless you have a reason not to.

03 · What to watch

Prometheus metrics worth watching

An exporter can publish hundreds of metrics. A useful first dashboard needs seven. The first three come from your own service: a request counter and a duration histogram. The rest come from node_exporter on each host, plus up, which Prometheus records for every target it scrapes.

sum by (route) (rate(http_requests_total[5m]))

sum(rate(http_requests_total{status=~"5.."}[5m]))
  / sum(rate(http_requests_total[5m]))

histogram_quantile(0.95,
  sum by (le) (rate(http_request_duration_seconds_bucket[5m])))

1 - avg by (instance) (rate(node_cpu_seconds_total{mode="idle"}[5m]))

node_memory_MemAvailable_bytes / node_memory_MemTotal_bytes

node_filesystem_avail_bytes / node_filesystem_size_bytes

up == 0

04 · Collect

Collect and chart Prometheus metrics

1. Expose /metrics from your code

Every major language has a Prometheus client library. Each example creates the counter and histogram from this guide and serves them on port 8000:

from prometheus_client import Counter, Histogram, start_http_server

REQUESTS = Counter("http_requests", "HTTP requests handled.", ["method", "status"])
LATENCY = Histogram("http_request_duration_seconds", "Request latency.")

start_http_server(8000)  # serves /metrics on port 8000

# Call this from your request handler
def record(method, status, handle):
    with LATENCY.time():
        handle()
    REQUESTS.labels(method, str(status)).inc()

import { createServer } from "node:http";
import { Counter, Histogram, register } from "prom-client";

const requests = new Counter({ name: "http_requests_total", help: "HTTP requests handled.", labelNames: ["method", "status"] });
const latency = new Histogram({ name: "http_request_duration_seconds", help: "Request latency." });

createServer(async (req, res) => {
  if (req.url === "/metrics") {
    res.setHeader("Content-Type", register.contentType);
    res.end(await register.metrics());
    return;
  }
  const stopTimer = latency.startTimer();
  res.end("ok");
  stopTimer();
  requests.inc({ method: req.method, status: String(res.statusCode) });
}).listen(8000);

package main

import (
	"net/http"

	"github.com/prometheus/client_golang/prometheus"
	"github.com/prometheus/client_golang/prometheus/promauto"
	"github.com/prometheus/client_golang/prometheus/promhttp"
)

var (
	requests = promauto.NewCounterVec(prometheus.CounterOpts{
		Name: "http_requests_total", Help: "HTTP requests handled.",
	}, []string{"method", "status"})
	latency = promauto.NewHistogram(prometheus.HistogramOpts{
		Name: "http_request_duration_seconds", Help: "Request latency.",
	})
)

func handle(w http.ResponseWriter, r *http.Request) {
	timer := prometheus.NewTimer(latency)
	defer timer.ObserveDuration()
	w.Write([]byte("ok"))
	requests.WithLabelValues(r.Method, "200").Inc()
}

func main() {
	http.Handle("/metrics", promhttp.Handler())
	http.HandleFunc("/", handle)
	http.ListenAndServe(":8000", nil)
}

use prometheus::{register_histogram, register_int_counter_vec, Encoder, TextEncoder};
use std::io::{Read, Write};
use std::net::TcpListener;

fn main() {
    let requests = register_int_counter_vec!(
        "http_requests_total", "HTTP requests handled.", &["method", "status"]
    ).unwrap();
    let latency = register_histogram!(
        "http_request_duration_seconds", "Request latency."
    ).unwrap();

    // In a real service, do this in your request handler.
    let timer = latency.start_timer();
    requests.with_label_values(&["GET", "200"]).inc();
    timer.observe_duration();

    // Serve /metrics. With axum or actix, return this body from a route instead.
    for stream in TcpListener::bind("0.0.0.0:8000").unwrap().incoming() {
        let mut stream = stream.unwrap();
        stream.read(&mut [0; 1024]).unwrap();
        let mut body = Vec::new();
        TextEncoder::new().encode(&prometheus::gather(), &mut body).unwrap();
        write!(stream, "HTTP/1.1 200 OK\r\nContent-Length: {}\r\n\r\n", body.len()).unwrap();
        stream.write_all(&body).unwrap();
    }
}

import io.prometheus.metrics.core.datapoints.Timer;
import io.prometheus.metrics.core.metrics.Counter;
import io.prometheus.metrics.core.metrics.Histogram;
import io.prometheus.metrics.exporter.httpserver.HTTPServer;

public class App {
    static final Counter requests = Counter.builder()
            .name("http_requests_total").help("HTTP requests handled.")
            .labelNames("method", "status").register();
    static final Histogram latency = Histogram.builder()
            .name("http_request_duration_seconds").help("Request latency.")
            .classicOnly().register();

    public static void main(String[] args) throws Exception {
        HTTPServer.builder().port(8000).buildAndStart(); // serves /metrics

        // In a real service, do this in your request handler.
        try (Timer timer = latency.startTimer()) {
            requests.labelValues("GET", "200").inc();
        }
        Thread.currentThread().join();
    }
}

using Prometheus;

var requests = Metrics.CreateCounter("http_requests_total", "HTTP requests handled.", "method", "status");
var latency = Metrics.CreateHistogram("http_request_duration_seconds", "Request latency.");

using var server = new MetricServer(port: 8000); // serves /metrics
server.Start();

// In a real service, do this in your request handler.
using (latency.NewTimer())
{
    requests.WithLabels("GET", "200").Inc();
}

await Task.Delay(Timeout.Infinite);

Open http://localhost:8000/metrics and you'll see the counter, and the histogram as _bucket, _sum and _count series. The Python client adds _total to the counter name itself. For software you don't own, such as databases, queues or the host itself, install an exporter that serves the same format.

2. Run Prometheus and Grafana

Your app now has a /metrics page, but nothing is reading it yet. That is the job of the Prometheus server, a separate program you run: it reads a config file listing the endpoints to scrape, requests each one every 15 seconds, and stores the results. Grafana is another program that draws dashboards from what Prometheus stored.

The quickest way to run both is Docker Compose. Put these three files in one folder:

services:
  prometheus:
    image: prom/prometheus
    ports: ["9090:9090"]
    volumes:
      - ./prometheus.yml:/etc/prometheus/prometheus.yml
    extra_hosts: ["host.docker.internal:host-gateway"]
  grafana:
    image: grafana/grafana
    ports: ["3000:3000"]
    volumes:
      - ./grafana-datasource.yml:/etc/grafana/provisioning/datasources/prometheus.yml

scrape_configs:
  - job_name: api
    scrape_interval: 15s
    static_configs:
      - targets: ["host.docker.internal:8000"]

apiVersion: 1
datasources:
  - name: Prometheus
    type: prometheus
    url: http://prometheus:9090
    isDefault: true

Run docker compose up with your app running on port 8000. host.docker.internal is how the containers reach your machine.

1. 01

   Check the scrape in Prometheus

   Open http://localhost:9090, type up and run it. A 1 means Prometheus reached your app. Any query from the list above works here too.

2. 02

   Chart it in Grafana

   Open http://localhost:3000 and sign in with admin / admin. The Prometheus data source is already set up by grafana-datasource.yml. Go to Explore, enter a query, and add it to a dashboard.

3. Or scrape straight into Maple

Maple can do the scraping, so there's no Prometheus server to run. It converts each sample to an OpenTelemetry metric, next to your traces and logs.

1. 01

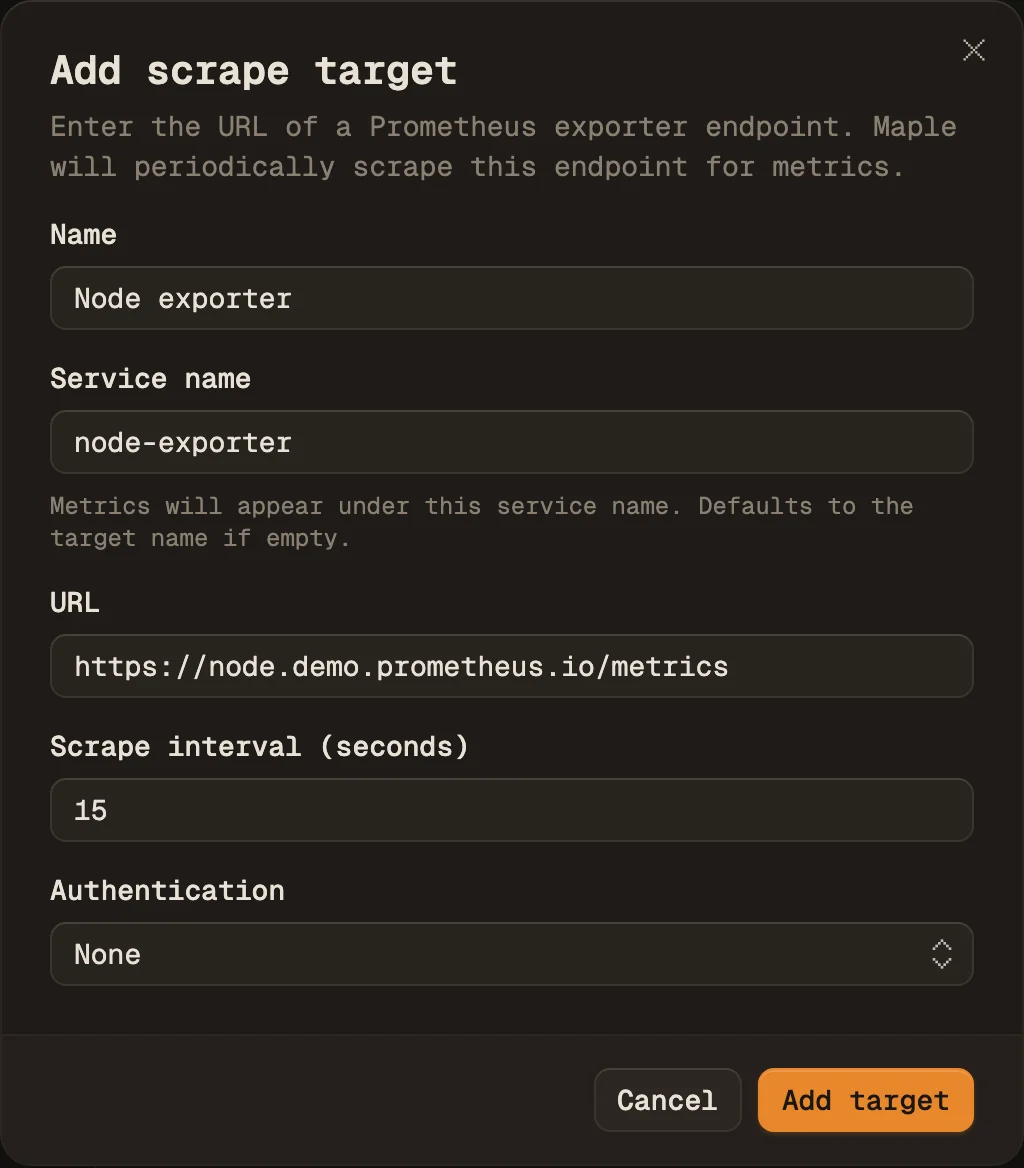

   Add a target

   Open Integrations → Prometheus, click Add target and enter the endpoint's URL, a scrape interval (5 to 300 seconds) and, if needed, a bearer token or basic auth. The service name is what the metrics appear under.



2. 02

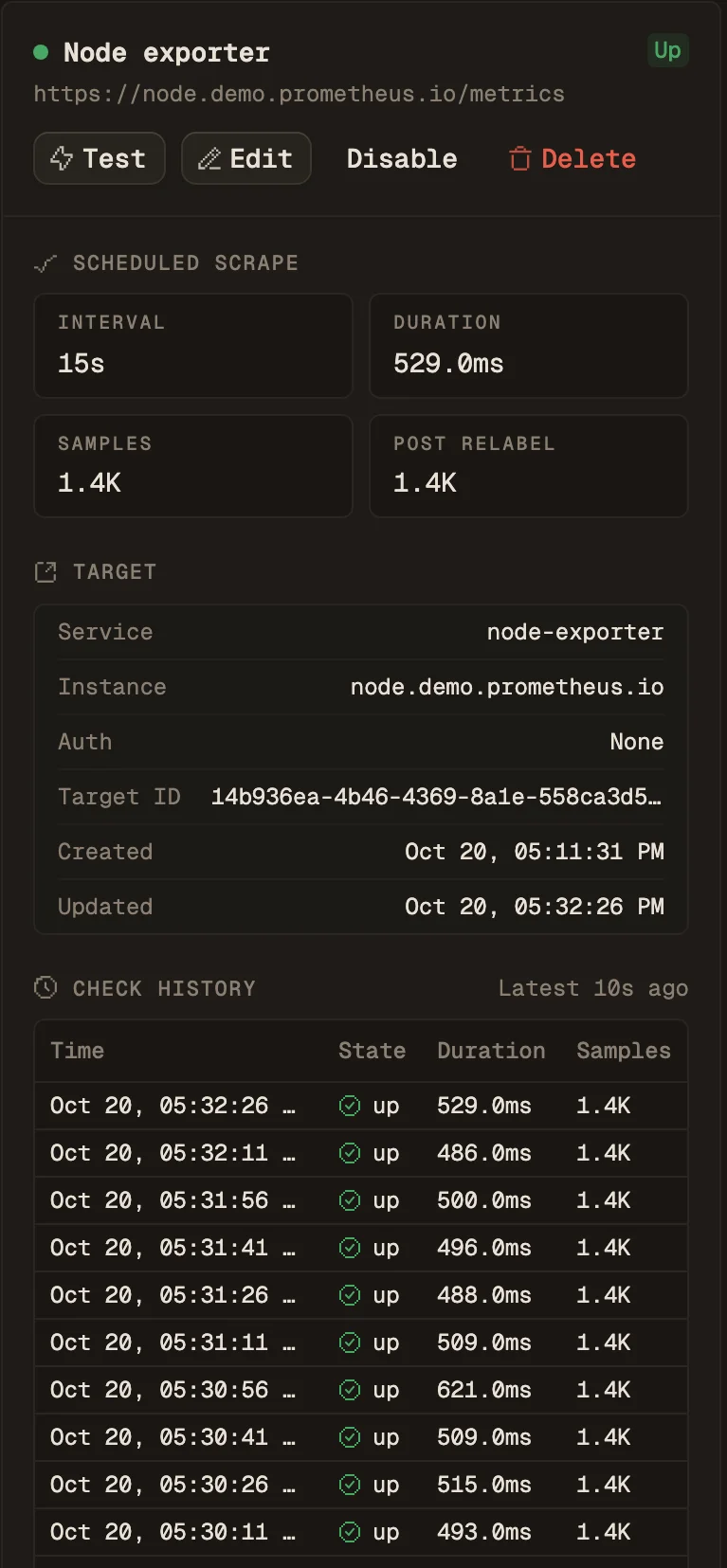

   Check that it's up

   Click Test for an immediate scrape. It reports success, or the exact HTTP, TLS or timeout error. Once the scheduled scrapes start, the target shows Up, with each run's duration and sample count in its check history.



3. 03

   Chart, then alert

   Find the metric in the Metrics explorer. Counters default to rate. Filter and group by any label, then use Add to dashboard or Create alert.

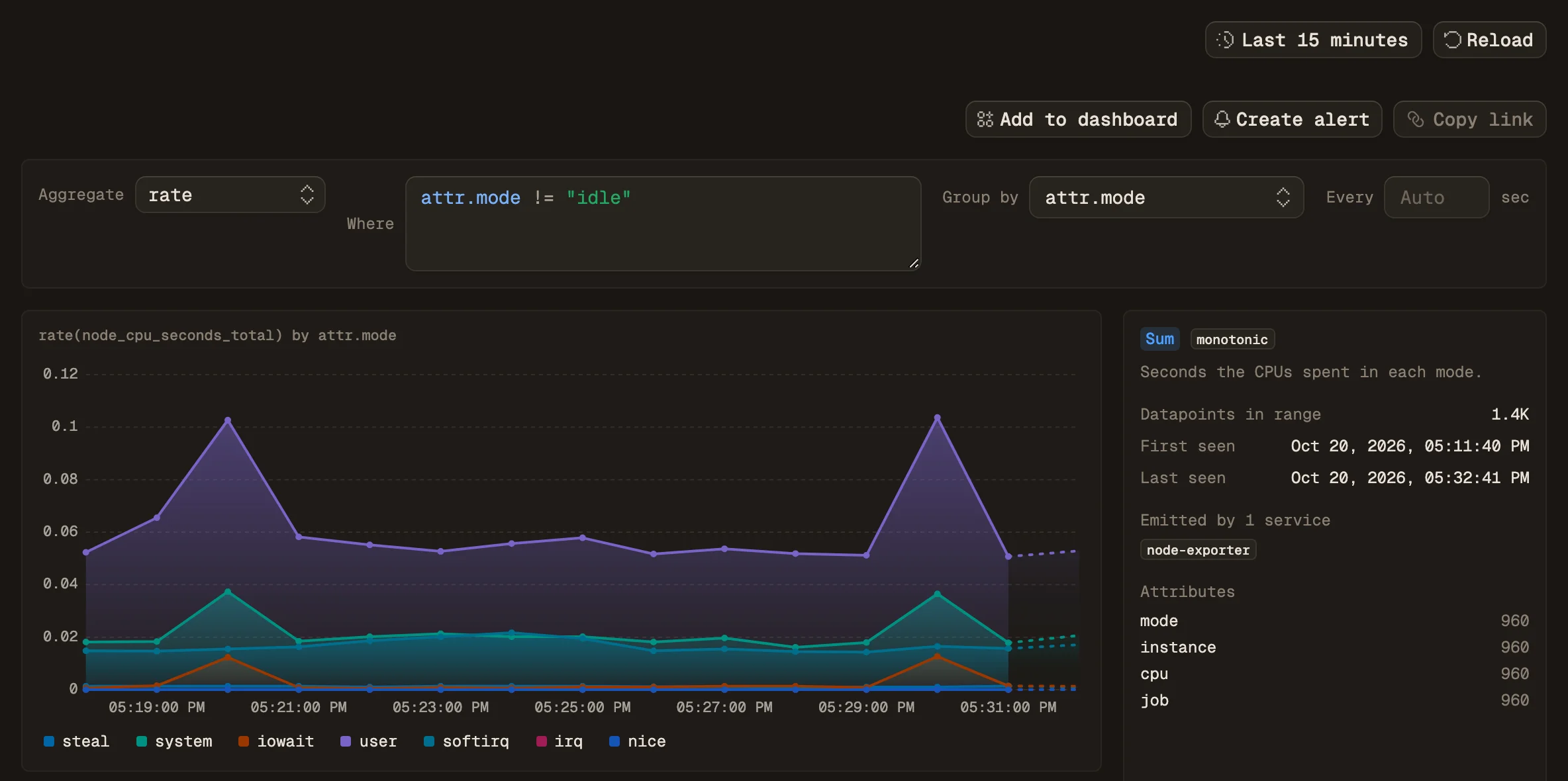

   The same CPU query as in the list above, in Maple: rate of node_cpu_seconds_total, grouped by mode, idle filtered out.

Maple only scrapes public endpoints. For one inside a private network, run an OpenTelemetry Collector there with a prometheus receiver and send the results to Maple over OTLP.
